SYRINGE DENESTER MIN OUTPUT RATE 24K/H

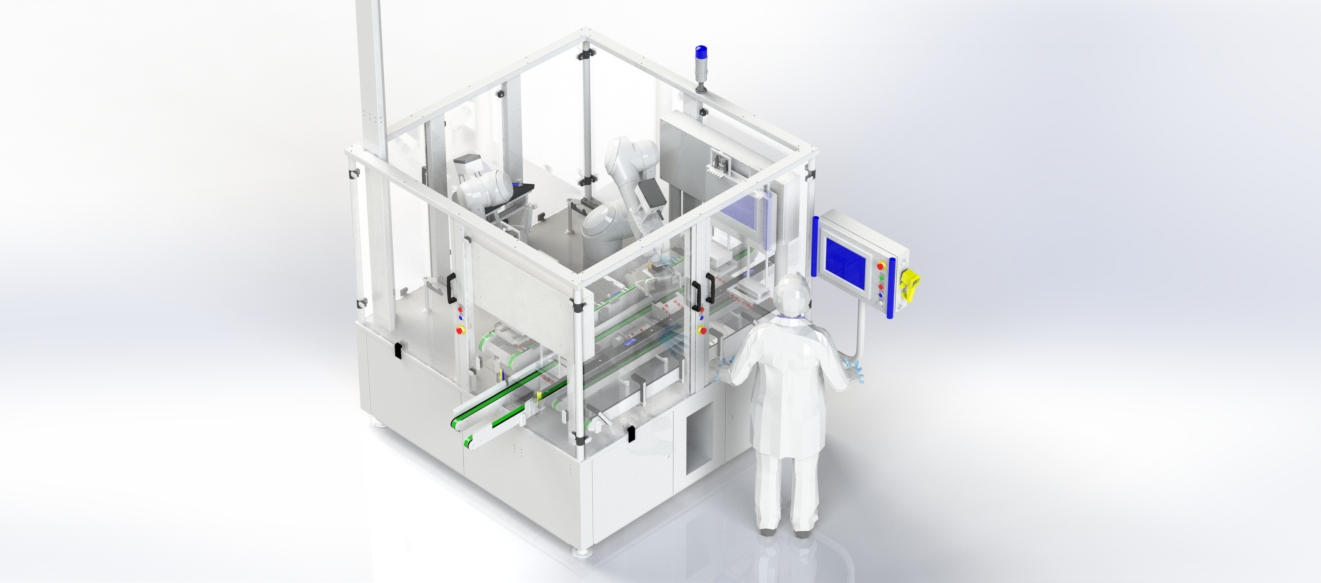

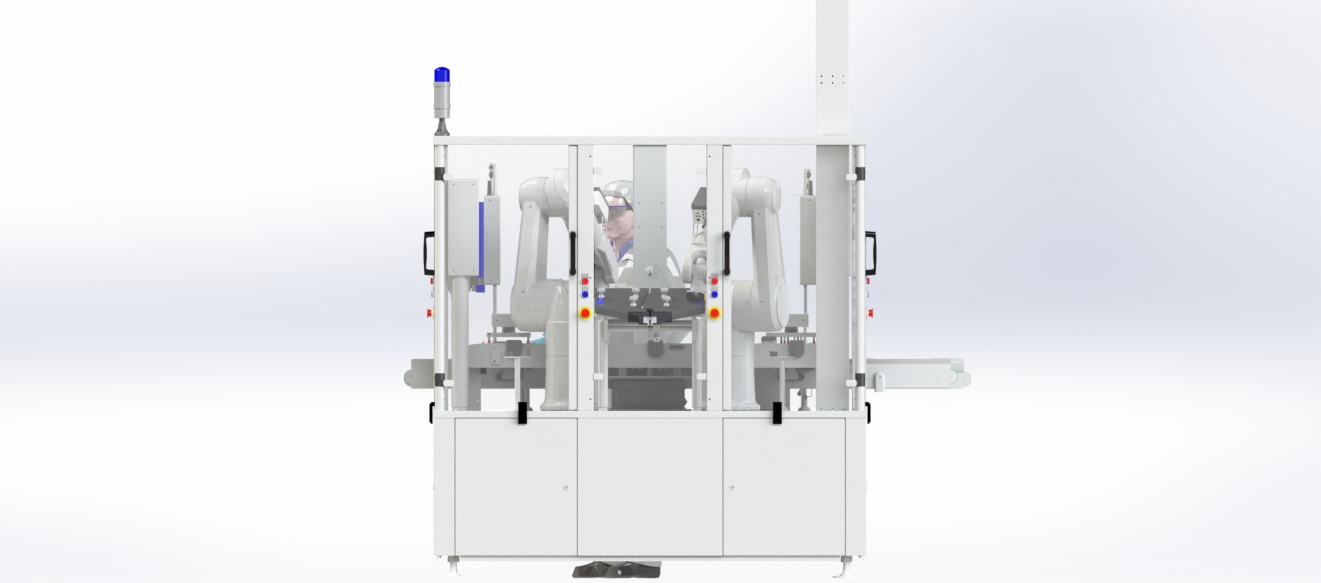

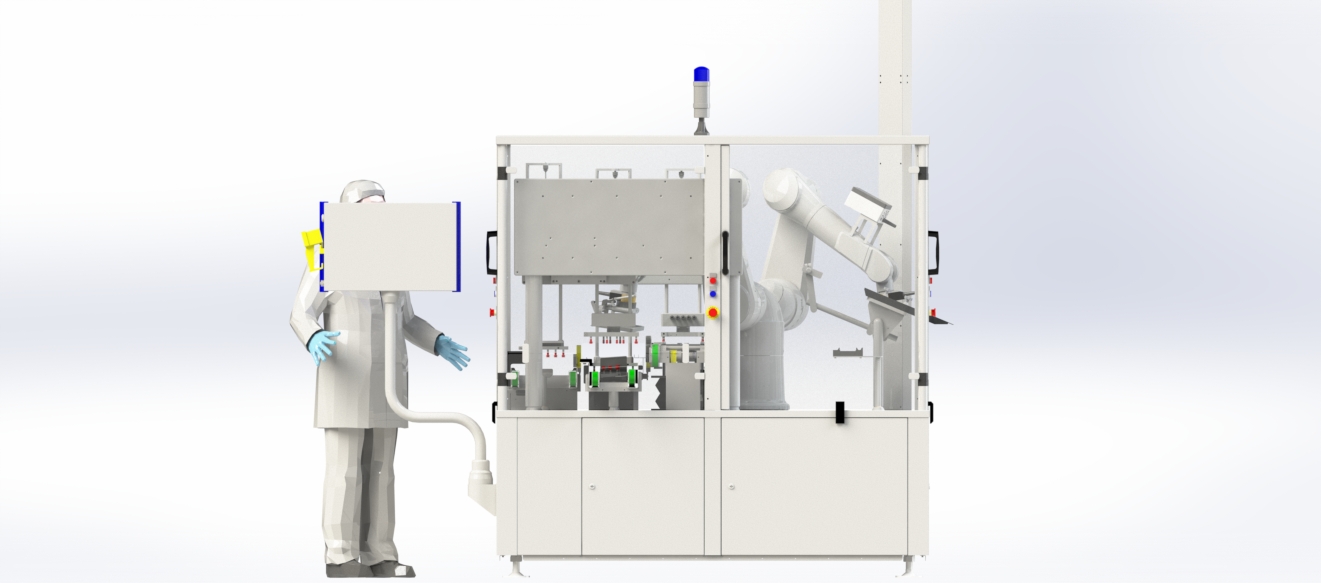

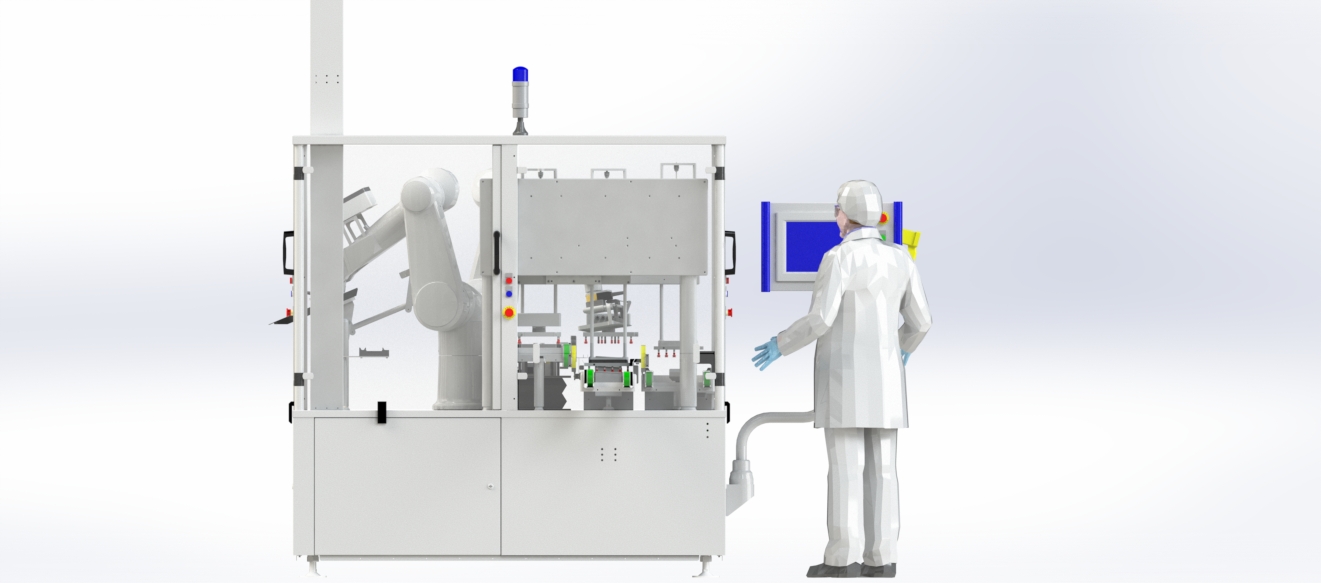

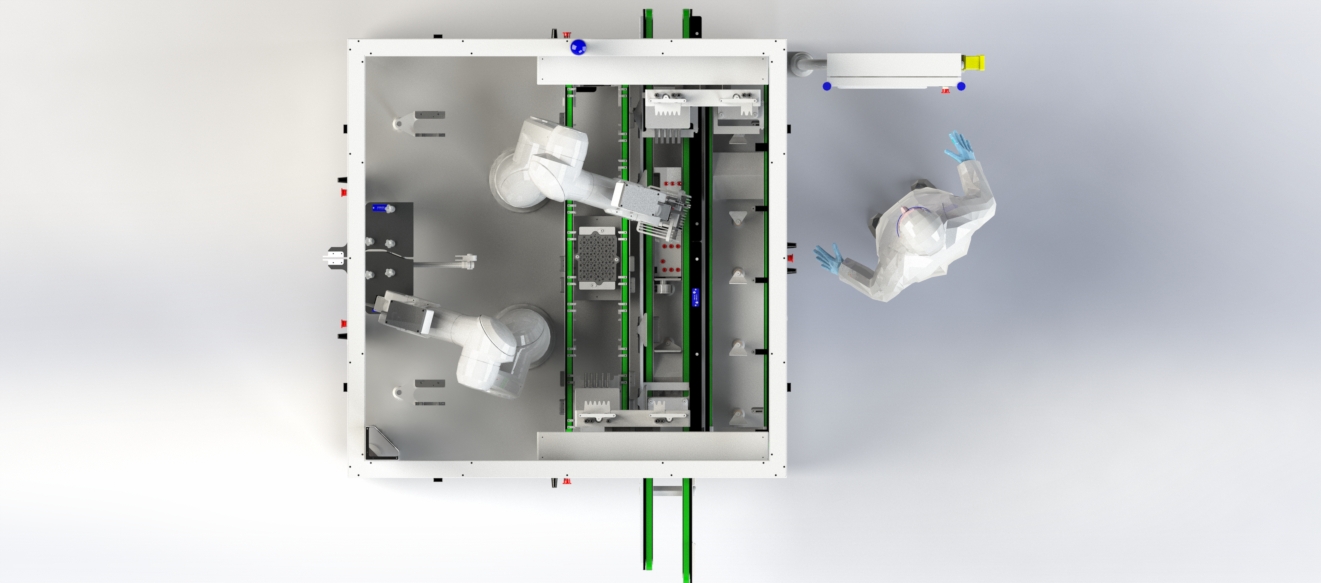

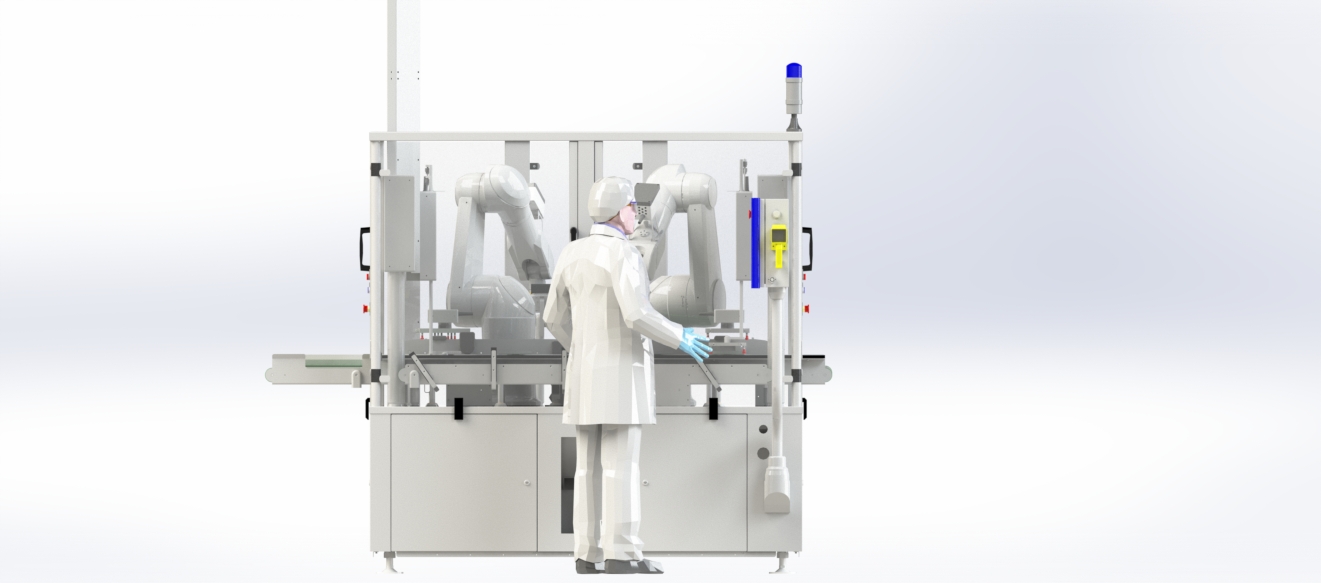

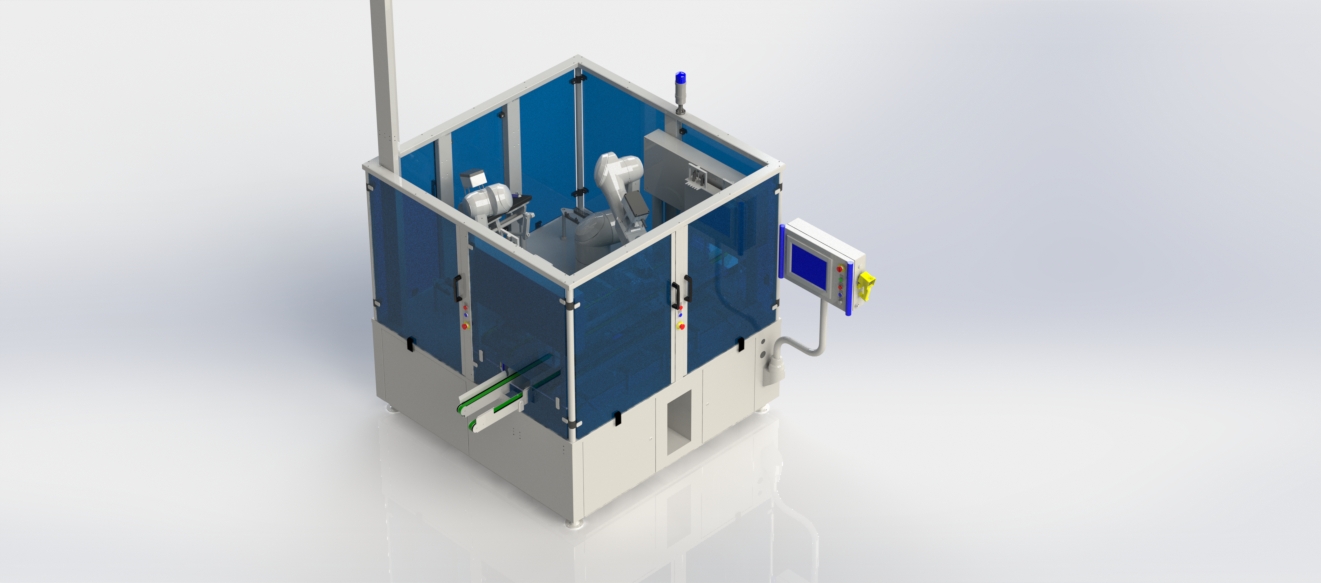

One of the many variations of one of our commercial successes. Over the years, we have developed different versions of this machine in order to adapt it to the specific requirements of our customers. This model is compact and handles nested syringes packaged in a tub or syringes on plastic combs packaged in a traditional four inches tub or in a specific plastic box. The formats processed are 6.85 - 8.15 - 10.85 in nests of 100 and 160 or 6.85 - 8.15 - 10.85 on plastic combs. The rate is at least 24.000 syringes per hour for all formats and up to 80.000 syringes per hour. On output, the tubs with nest or box with comb are reassembled for later use. At the outlet, the syringes are automatically distributed on demand to an inspection machine. This equipment is the natural complement of a modern visual inspection machine or the "multi-product" start of a flexible packaging assembly line.
Date
JUN 2008
Status
TECHNICAL FILE FOR SALE
Category
LIFE SCIENCES
Client
SANOFI-AVENTIS
